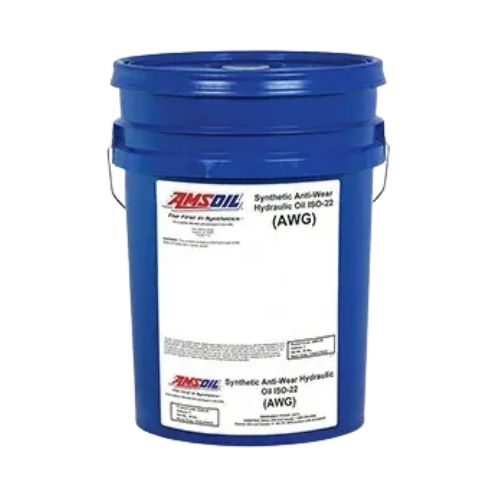

Synthetic AW Series Anti-Wear Hydraulic Oil

AMSOIL Synthetic AW Series Anti-Wear Hydraulic Oils are shear-stable, long-life lubricants based on high-quality synthetic oil technology. These oils are formulated with a premium additive system that inhibits oxidation to help prevent acid formation and viscosity increase and inhibit rust and foam (providing smooth hydraulic operation). AW Oils contain a very effective zinc-based anti-wear/antioxidant additive which controls wear in high-speed, high-pressure vane and gear pumps while meeting the lubrication requirements of axial piston pumps with bronze-on-steel metallurgy. Improved pump efficiency can increase hydraulic power, reduce fuel consumption and improve productivity. AW Oils are designed for long life and can typically reduce maintenance costs by extending drain intervals and reducing labor costs, repairs and downtime.

AMSOIL Synthetic Base Oil Technology
AMSOIL synthetic base oils resist thermal and oxidative breakdown, reducing varnish deposits. The very high viscosity indices, low pour points and lack of paraffins (wax) make these good all-season lubricants well-suited for high and low temperature extremes. At high temperatures and pressures, AMSOIL AW Series Oils provide a good lubricating film and protect components against wear. During cold-temperature operation, equipment starts easier and the need for preheating with sump heaters is reduced. The AW Series base oils also readily separate from water, preventing oil/water emulsions that inhibit lubrication and allowing for longer lubricant life and easier water drainage from the sump.

Performance Features

• Antiwear protection for high-pressure systems
• Recommended for gear, vane and piston pumps
• Contain rust, oxidation and foam inhibitors
• Designed for extreme-temperature operation
• Hydrolytically stable and readily separate from water

Application Recommendation
The correct viscosity grades of AMSOIL Synthetic AW Series Anti-Wear Hydraulic Oils are recommended for high- and low-pressure gear, vane and piston stationary and mobile hydraulic systems. They are excellent for general-purpose use where extended drain intervals are desired and in severe-duty operations where temperature extremes are encountered.

AMSOIL AW Series Oils are compatible with hydraulic system seals, petroleum hydraulic oils and most synthetic hydraulic oils*. For optimum performance, it is recommended the system be thoroughly drained and, if warranted, cleaned prior to installation. Oil analysis is recommended to maximize oil drain intervals.

* Not compatible with phosphate ester, silicone or water-based fluids.

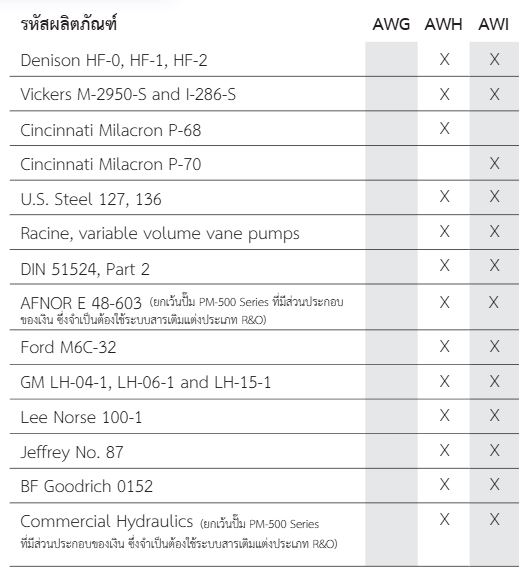

AMSOIL recommends the Synthetic AW Series Hydraulic Oils for use where the following specifications are required:

• Denison HF-0, HF-1 and HF-2
• Vickers M-2950-S and I-286-S
• Cincinnati Milacron P-68, P-69 and P-70
• U.S. Steel 127
• Racine, variable volume vane pumps
• DIN 51524, Parts 2 and 3 HLP22-HLP46
• SEB 181222 HLP22-HLP68
• ASTM D-6158 HV
• AFNOR E 48-603*
• Ford M6C32
• GM LH-04-1, LH-06-1 and LH-15-1
• Lee Norse 100-1
• Jeffrey No. 87
• BF Goodrich 0152
• Commercial Hydraulics*

* Except for PM-500 series silver-containing pumps which require R&O additive systems.
