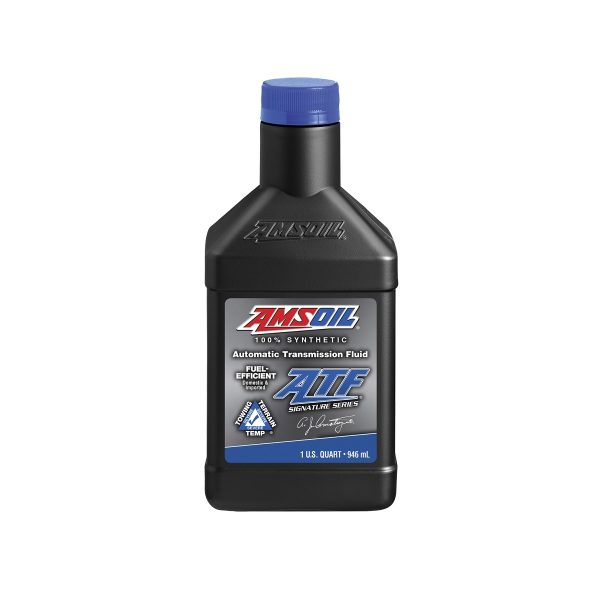

Signature Series Fuel-Efficient Synthetic Automatic Transmission Fluid

   Signature Series Fuel-Efficient Synthetic Automatic Transmission Fluid

AMSOIL Signature Series Fuel-Efficient Synthetic Automatic Transmission Fluid (ATL) is specifically designed for modern automatic transmissions in vehicles from GM, Ford, Toyota, Honda, Nissan, and more. It provides outstanding protection and performance and is recommended for transmissions requiring specifications such as GM DEXRON® VI, Ford MERCON® LV and SP, Honda DW-1, Nissan Matic-S, and Toyota WS.

Automatic transmissions in cars, trucks, and vans generate significant heat under heavy loads. Increased heat accelerates fluid degradation, leading to metal-to-metal wear, sludge, and deposit formation. These issues are especially critical for modern transmissions, which have narrower fluid passages, more gears, and clutch packs that demand high-quality, clean fluid for optimal performance and extended service life.

The AMSOIL Signature Series Fuel-Efficient Synthetic ATF (ATL) is engineered to perform reliably under normal to severe service conditions, including vehicles used for towing or harsh driving, while maintaining exceptional gear protection and lubrication.

Key Benefits

1. Superior Heat Resistance
AMSOIL Signature Series Fuel-Efficient ATF contains advanced oxidation inhibitors that provide excellent resistance to thermal breakdown. This helps prevent sludge and varnish formation caused by heat, which can restrict fluid flow. After 160,000 km of severe-service testing, the fluid retained 41% of its original oxidation resistance, proving its long-lasting performance.

2. Outstanding Wear Protection
The fluid’s strong film strength and premium extreme-pressure (EP) and anti-wear additives ensure superior wear resistance. In the FZG wear test, AMSOIL ATL achieved Level 12 (minimum wear), the highest rating, surpassing the requirements of Ford MERCON® V and Chrysler ATF+4.

3. Excellent Low-Temperature Fluidity
Conventional ATFs often become thick in cold temperatures, causing delayed shifts and reduced fuel efficiency. AMSOIL ATL is wax-free and flows easily even below -60°F, enabling smooth shifting and improved fuel economy in extremely cold conditions.

4. Consistent Friction Properties
Modern transmissions are smaller, handle higher horsepower and torque, and require smooth, precise shifting. AMSOIL ATL contains optimized friction modifiers that ensure strong clutch engagement, high torque transfer, and reduced clutch chatter. Even after 160,000 km of severe use, its frictional performance remains close to that of new fluid.

5. Proven Field Performance
A real-world test spanning 288,000 km in severe stop-and-go taxi service in Las Vegas demonstrated the fluid’s premium durability. Independent analysis (ABOT – Aluminum Beaker Oxidation Test) confirmed that AMSOIL ATL outperformed the oxidation resistance requirements of Chrysler ATF+4. At 160,000 km, internal transmission components—including valves and clutch plates—showed virtually no varnish, sludge, or wear, confirming AMSOIL’s superior quality under extreme conditions.

Applications

AMSOIL Signature Series Fuel-Efficient Synthetic ATF (ATL) is recommended for automatic transmissions and power steering units requiring the following specifications:

Aisin-Warner: AW-1
BMW: 83 22 0 142 516, 83 22 2 152 426
Chrysler: MOPAR® 68157995AA, SP-IV, 68218925AB
DSIH: 6p805
Ford: MERCON® LV, SP, ULV
GM: DEXRON® HP, DEXRON® VI, ULV
Honda/Acura: DW-1®, Type 3.0
Hyundai/Kia: SP-IV, SPH-IV, SP-IVRR, NWS-9638, SP4-M
JASO: 1A-LV
JWS: 3324
Mazda: ATF FZ
Mercedes-Benz: 236.12, 236.14, 236.15, 236.41
Mitsubishi: SP-IV, ATF J3, ATF-PA, ATF-MA1
Nissan: Matic-S, Matic-W
Saab: 93 165 147
Shell: M-1375.4, M-1375.5, M-1375.6, M-L 12108
Toyota: WS
Volvo: 31256774
VW/Audi: G 055 005, G 055 162, G 060 162
ZF: S671 090 255

Note: Not for use in CVT transmissions or Ford Type F.

Compatibility with Other ATFs

AMSOIL Signature Series Fuel-Efficient Synthetic ATF (ATL) can replace fluids meeting DEXRON® II specifications in older GM automatic transmissions (DEXRON® VI fully supersedes DEXRON® III).

Service Life

• Normal service: Follow the vehicle manufacturer’s recommended drain interval.

• Severe service: Can be used for up to twice the OEM drain interval under severe conditions.
